RV Solar Panel Kit with Inverter and Battery for Car, Marine and Caravan Car
Aiming for researching the convenient and green charging for outdoors, Rojec Energy can provide you the mature scheme for the portable solar power. Below is the introduction for a set of newest 100 watt solar panel kit with battery and inverter.
Send Inquiry
Product Description
High quality Initial,and Buyer Supreme is our guideline to offer the ideal assistance to our shoppers.At present, we are striving our best to become amongst the ideal exporters inside our industry to satisfy shoppers more want for RV Solar Panel Kit with Inverter and Battery for Car, Marine and Caravan Car, With a wide range, good quality, fair rates and great services, we are going to be your ideal small business partner. We welcome new and outdated prospects from all walks of lifestyle to get in touch with us for future company associations and achieving mutual accomplishment!
RV Solar Panel, Solar Power, Solar System, Our factory is equipped with complete facility in 10000 square meters, which makes us be able to satisfy the producing and sales for most auto part solutions. Our advantage is full category, high quality and competitive price! Based on that, our goods win a high admiration both at home and abroad.

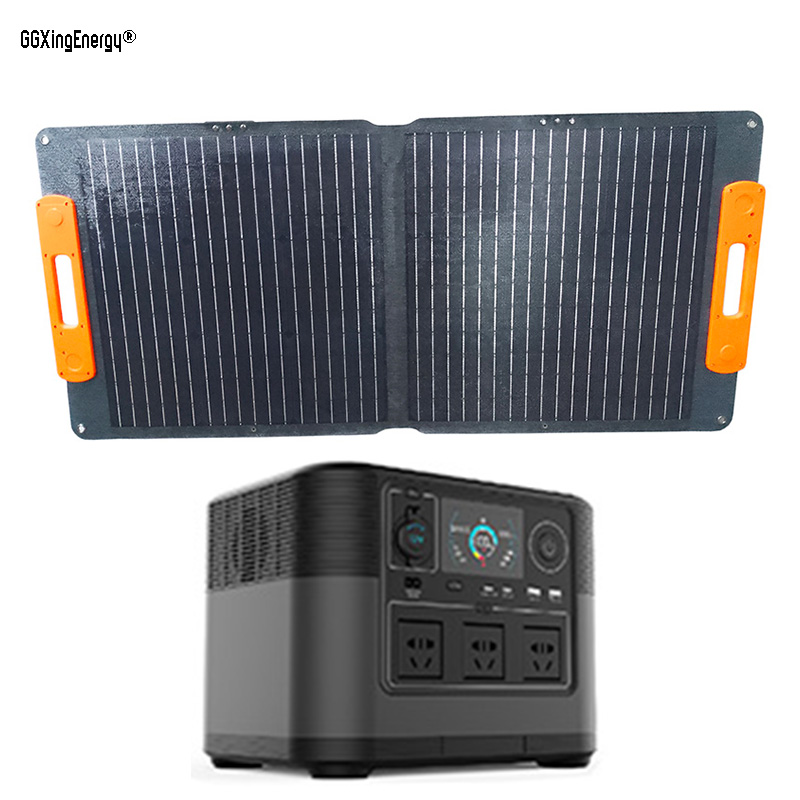

This is a wonderful combination for the solar and battery. Via this GGXingEnergy® 100 watt solar panel kit with battery and inverter, you can get free charging from sunlight directly via the solar panel, then store power into the battery case. And because the units of the 100 watt solar panel kit with battery and inverter are portable enough, that is suitable for kinds of outdoor uses.
100 Watt Solar Panel Kit with Battery and Inverter Parameter
Solar Panel
|
Solar Panel Max Power |
100 Watt |
|
Solar Cell Type |
A-grade monocrystalline |
|
Solar Cell Efficiency |
22%-23% |
|
Optimum Operating Voltage (Vmp) |
18V |
|
Optimum Operating Current (Imp) |
5.5A |
|
Open-Circuit Voltage (Voc) |
21.6V |
|
Short-Circuit Current (Isc) |
6.1A |
|
Output Port |
MC4 |
|
Test Condition |
STC Irradiance 1000W/m², TC=25℃, AM=1.5 |
|
Operating Temperature |
14℉－149℉ (-10℃－+65℃) |
|
Material |
ETFE + EVA layer + Solar Cell + PCB backer sheet + Canvas cloth cover |
|
Extended Size |
59*55.9*3.2cm |
|
Folded Size |
112*59*1.6cm |
|
Weight |
Approx. 9.92lbs(4.5kg) |
|
Color |
Black |
|
Certification |
CE / RoHS / FCC |
|
Warranty |
1 year |
Power Supply
|
Battery Type |
LFP 32140 |
|
Battery Capacity |
1008WH |
|
AC Charging Time |
Around 7 hours |
|
Solar Charging Time |
Above 6 hours |
|
USB Output |
General USB 5V/2.4A + QC3.0 + Type-C |
|
Car Charger Output |
13.5V/9A |
|
DC Input (Solar Panel) |
Max 10A (support 18V-22V) |
|
AC Output |
110V/220V/1200W (peak 2000W) |
|
Operating Temperature |
-10 ~ 40 centi-grade |
|
Lifecycle |
>2500 times |
|
Size |
290x230x220mm |
|
Net Weight |
10.5KG |
|
Accessory |
1xAC adapter with charging cable, 1xmanual |
|
Certification |
CE, RoHS, FCC, PSE, MSDS, UN38.3 |
|
Warranty |
1-year |
100 Watt Solar Panel Kit with Battery and Inverter Feature & Description
1), Most Wide Compatibility
The GGXingEnergy® 100 watt solar panel kit with battery and inverter is fantastic for courtyard use, outdoor camping, and other occasions when wall outlet is not available. Because it is with inverter, the application is not limited to DC output again. The inverter can convert power to AC output to support laptop, fan, TV, rice cooker, microwave, fridge, aircondition… And for the DC part, it is updating the charging. For the phone, tablet, power bank, music player and other small units, you can get wonderful, safe, stable and quick charging. The 100 watt solar panel can also be used separately to charge the portable power stations, laptops or 12v batteries. That is totally getting power directly from sunlight. Then the 100 watt solar panel kit with battery and inverter can store power there.
2), Easy and convenient for use
The 100 watt solar panel kit with battery and inverter is with two parts, the 100 watt solar panel and the 1200w portable power case. The 100 watt solar panel is with 2 folds, foldable and portable, with handle for free carrying and compact size for easy storing. There are four mounting holes at each corner, convenient for the installation at any situation where you want. At its back it is installed with two kickstands. Via this, you can always adjust the solar panel to let it stay at a better position to get more sunlight and convert out more power. The portable power case is with all components built-in. Compared to a DIY solar system, you do not need to find the right connection for the battery and inverter. You just need to open the switch, then it can work directly. Also there is no any risk from a false connection.
3), Smart solar power
The portable power supply is using MPPT solar controller to let the 100 watt solar panel kit with battery and inverter be smart enough. It can always track the max power of the solar panel to improve the charging efficiency.
4), Better quality and excellent use
The 100 watt solar panel kit with battery and inverter is using the one-piece design solar panel. There is no any crack again between the cloth and solar panel, to improve the waterproof grade. And the surface of solar panel is structured with ETFE film. This can make the 100 watt solar panel kit with battery and inverter be more durable. And benefitted from its good features for being dustproof, scratching proof and corrosion against, the solar panel’s service life can be completely extended.
Hot Tags: Solar Panel, Solar Power, Solar System
